EMULSIFIER - scanEmul 175

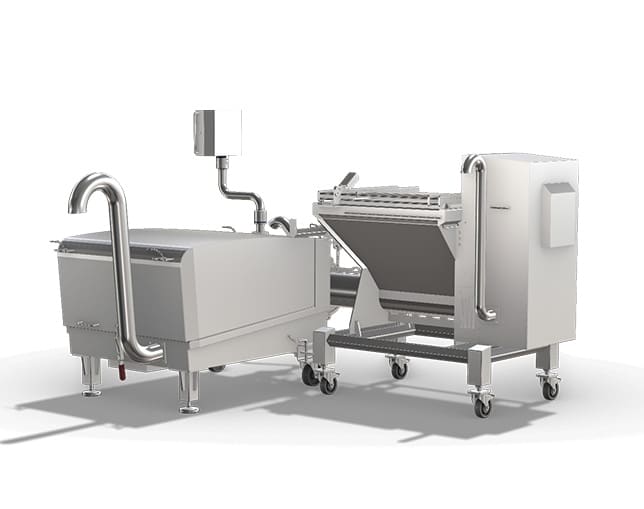

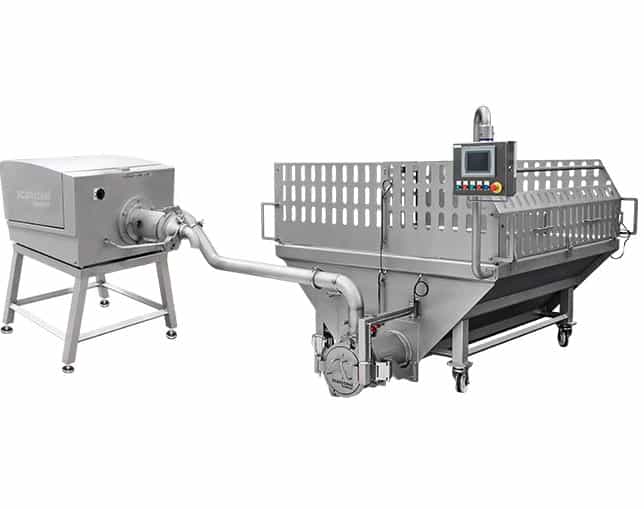

The scanEmul 175
shown with a scansteel
foodtech ContiPump 250
with Twin Screw to avoid
bridge building. Typically,
the ContiPump 250 is
positioned so either one
or two mixers can
discharge into the infeed
hopper of the ContiPump
250.

scansteel foodtech emulsifier scanemul + contipump

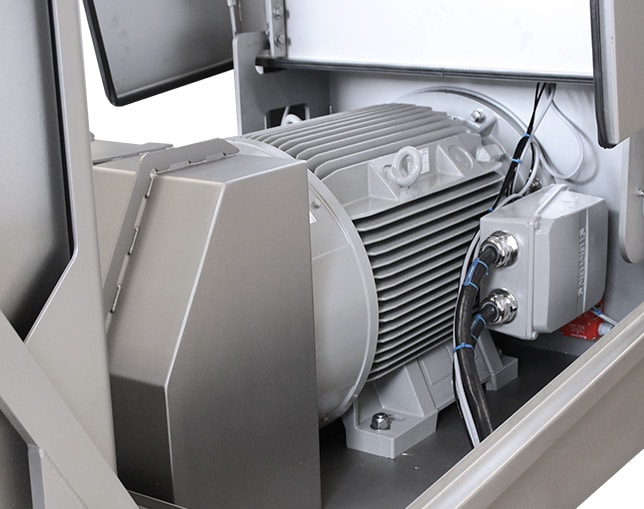

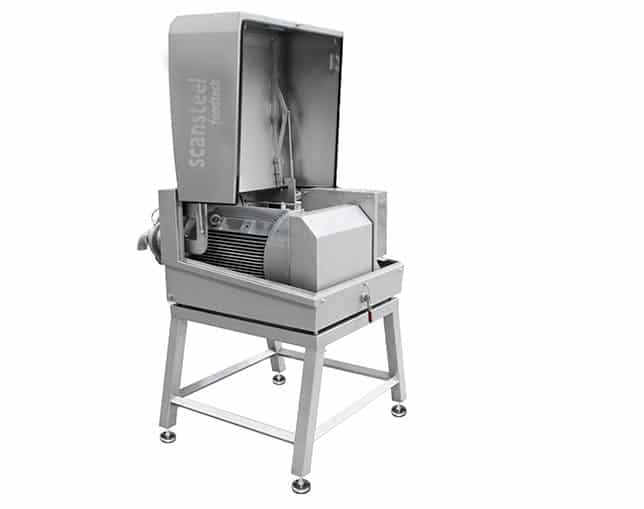

scanEmul 175 shown with
motor cover in open
position for easy access.

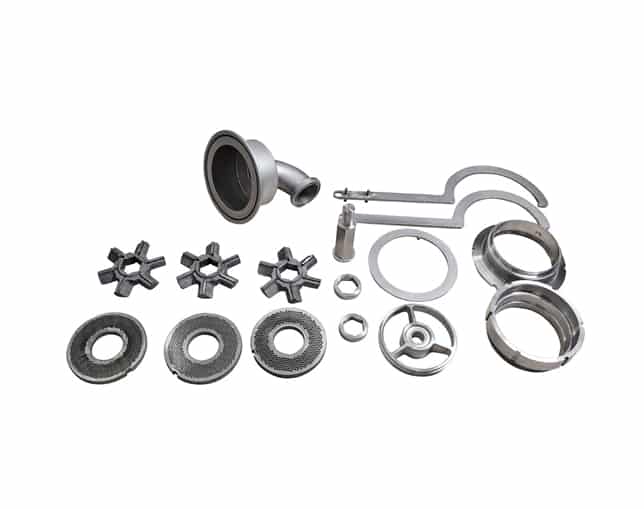

Triple knife set, loose parts
when scanEmul 175 is
disassembled, together
with tooling for assembly/
disassembly.

scanEmul 175 shown
disassembled, ready for
cleaning, front view.

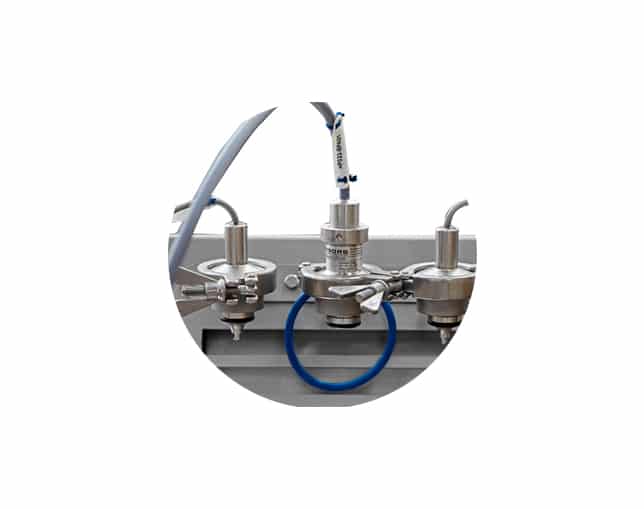

Close-up picture of inlet
and outlet temperature
sensors as well as
pressure transducers.

scanEmul 175 shown
disassembled, ready
for cleaning, rear view.

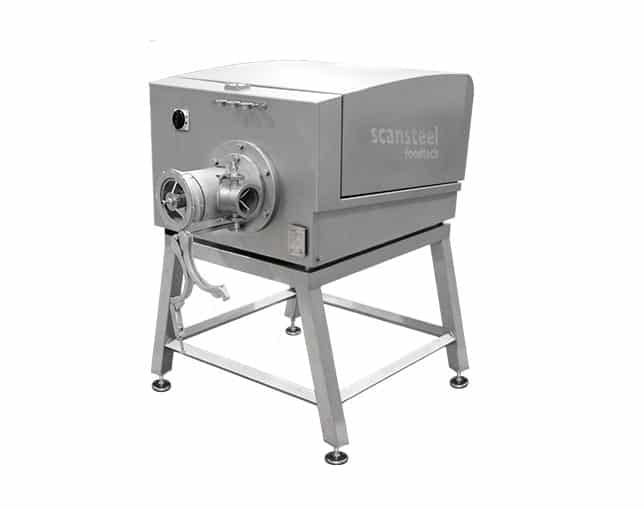

The scansteel foodtech® scanEmul 175 is an emulsifier for production capacities ranging from 2000 – 7000 kg/hour. The scanEmul 175 is manufactured with the following motor options: 55 kW, 75 kW, or 90 kW. The scanEmul 175 is, as standard, supplied in two versions, pump fed or hopper fed. For hopper fed applications, the hopper is a stand-alone hopper with a single or a double screw to avoid bridge building of meat raw material pre-mixes.

scanEmul 175 Series

Download our brochure

scanEmul 175 - Hopper fed.pdf

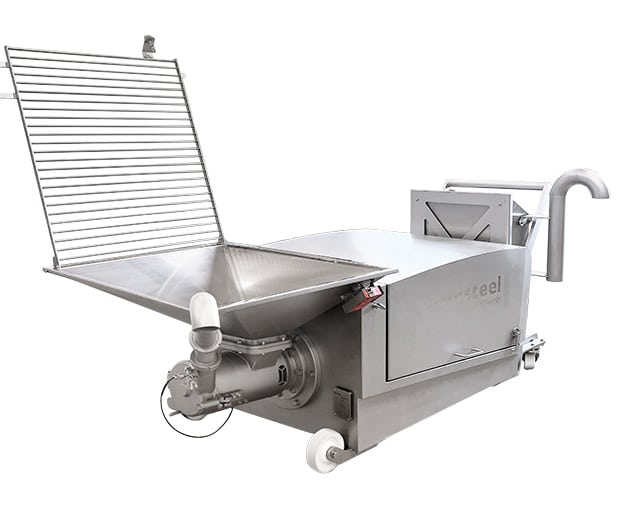

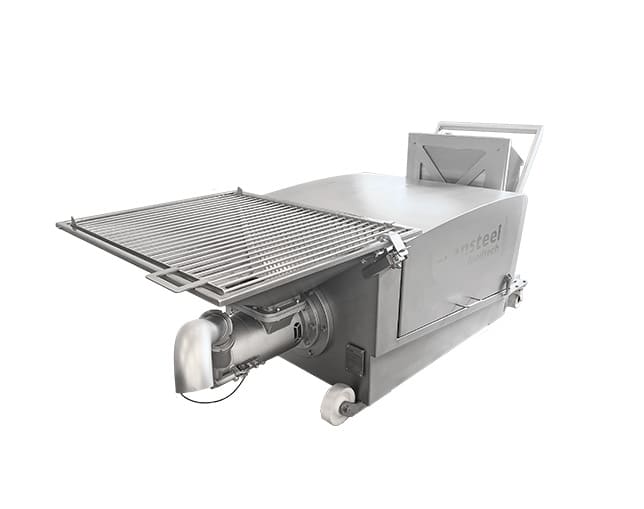

scansteel foodtech® scanEmul 175
– Hopper Fed

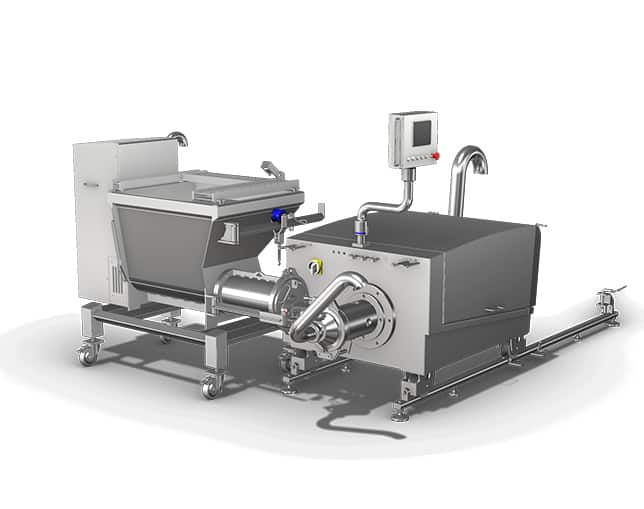

scansteel foodtech® scanEmul 175
– Screw Hopper Fed

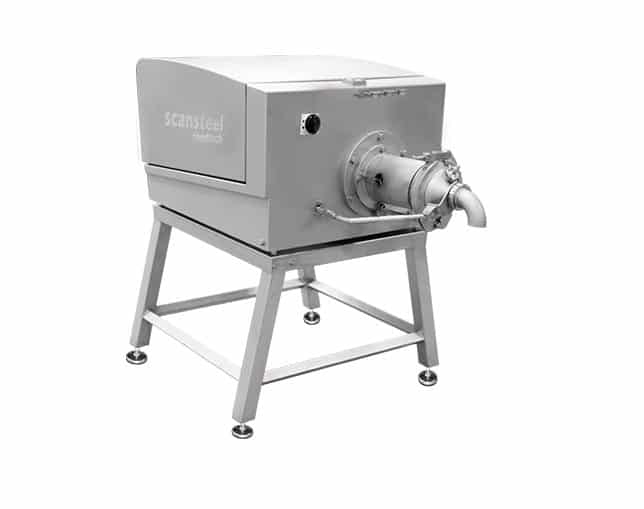

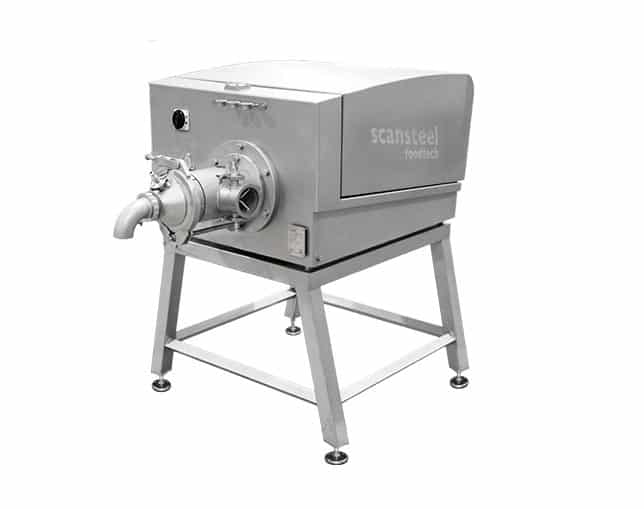

scansteel foodtech® scanEmul 175
– Pump Fed

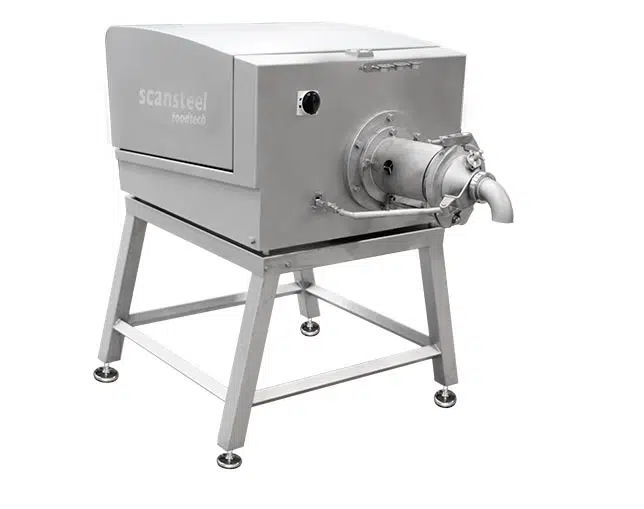

scanEmul 175 - Hopper fed

The scansteel foodtech® scanEmul 175 - Hopper fed emulsifier combines efficient and simple operation with high continuous performance, long durability, and low running and maintenance costs. The scanEmul 175 knife cassette system ensures the same uniform final particle size/emulsion quality for every production run, improve the level of fineness, optimize the protein extraction and increase production capacity. It therefore meets all the requirements for quality-oriented uniform production.

Ultra flexible knife casette system

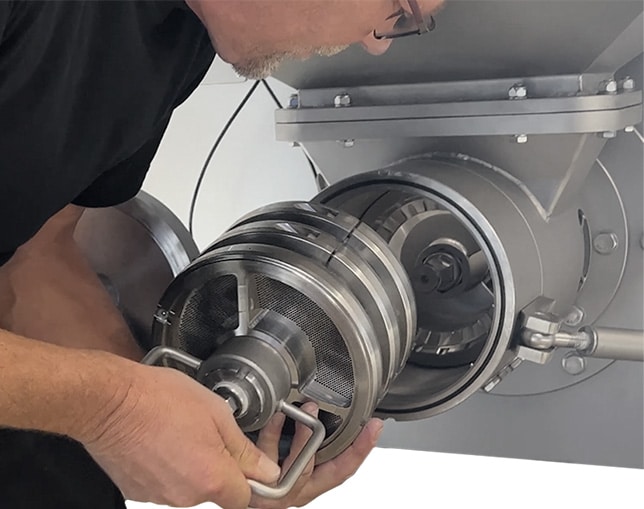

The scansteel foodtech® scanEmul 175 - Hopper fed knife cassette system has been designed so it can be assembled at the workshop by trained technicians. As such, the only thing the machine operators must do is to replace the knife cassette at agreed intervals.

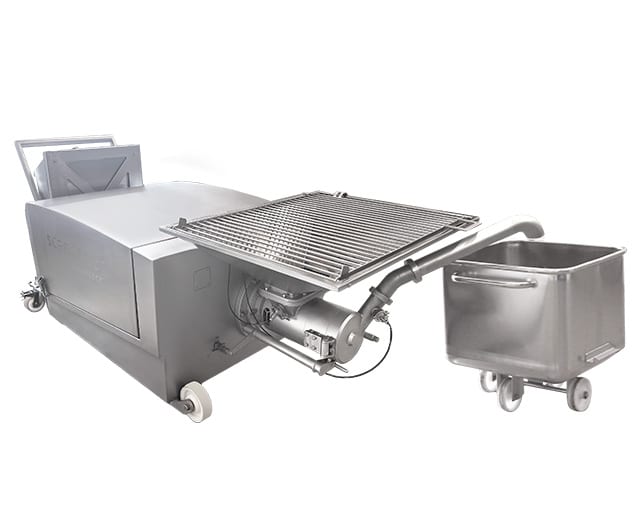

scanEmul 175 - Screw hopper fed

scanEmul 175 - Pump fed

The scanEmul 175 shown below with a scansteel foodtech® ContiPump 250 with Twin Screw to avoid bridge building. Typically, the ContiPump 250 is positioned so either one or two mixers can discharge into the infeed hopper of the ContiPump 250.

Technical Specifications

Motor size	55 kW – 90 kW
Speed of knifes	Up to 3000 Rpm
Capacity range	2000 kg/hour – 7.000 kg/hour
Knife set	Single-, Double-, or Triple Knife set
