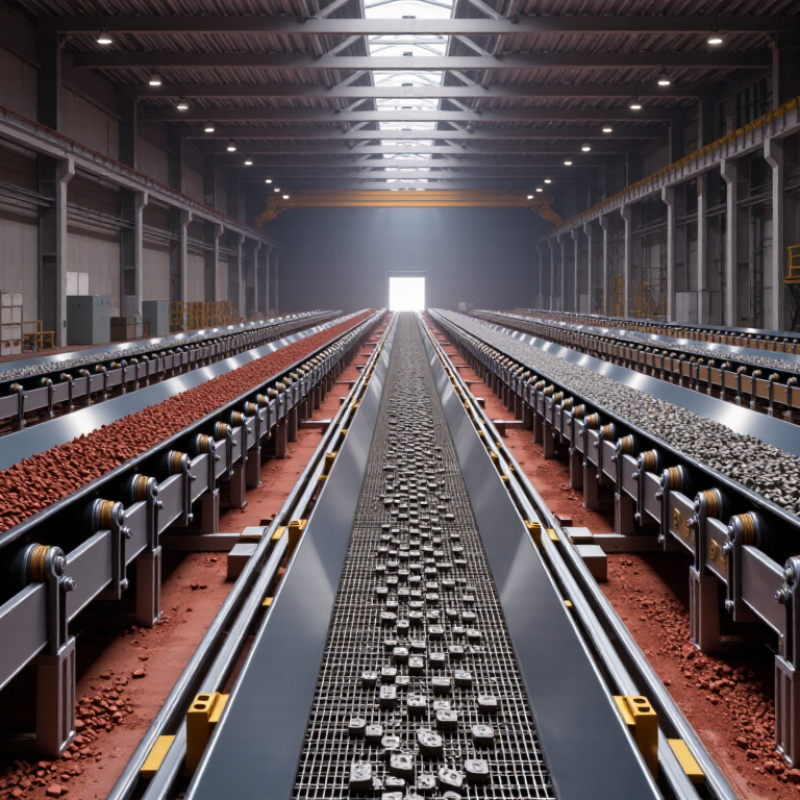

Top 10 Steel Conveyor Belt Types for Buyers

Choosing a steel conveyor belt is not a simple matter of selecting the strongest option. Load, route length, material sharpness, temperature, and maintenance access all affect performance. World Steel Association data puts global crude steel production at about 1.89 billion tonnes in 2023, while UNEP’s Global Resources Outlook 2024 warns that resource extraction could rise substantially by 2060. These figures describe the scale of industrial movement—not conveyor-belt sales—but they show why reliable bulk handling matters.

The right belt may be steel-cord, stainless-steel mesh, hinged steel, or another design. Each solves a different problem. A belt carrying hot, abrasive ore faces different demands from one moving small components through a washdown area. Conveyor specialist Todd Swinderman has written extensively about bulk-material handling and conveyor maintenance. A practical paraphrase of that guidance is: “Choose components for the real operating conditions, and maintain the whole system.” This is a paraphrase, not a verbatim quotation.

This guide compares ten steel conveyor belt types through their construction, typical uses, strengths, and trade-offs. It also considers details buyers can overlook, such as splice design, belt tracking, cleaning, and access for repairs. A catalogue rarely shows the full operating picture. And specifications alone cannot settle every choice. Site measurements, material samples, and advice from qualified engineers still matter. The comparisons ahead are a starting point, not a substitute for checking the actual duty.

Table of Contents [Hide]

1 Steel Conveyor Belts: Structure, Materials, and Operating Principles

2 How Steel Conveyor Belts Are Classified by Design and Function

3 Top 10 Steel Conveyor Belt Types and Their Key Applications

4 Comparing Belt Performance, Durability, and Maintenance Requirements

5 How Buyers Choose the Right Steel Conveyor Belt

Steel Conveyor Belts: Structure, Materials, and Operating Principles

Steel conveyor belts handle hot, sharp, or abrasive loads that can wear fabric belts quickly. Their structure varies: hinged-plate belts join metal plates with pins, while wire-mesh belts use woven strands for airflow and drainage. Stainless steel offers corrosion resistance; carbon steel often suits heavier-duty service. Selection depends on temperature, impact, load shape, and cleaning requirements. Small details matter.

Drive force transfers through contact between the belt and pulley. A take-up system maintains tension and helps prevent slipping. CEMA’s Belt Conveyors for Bulk Materials treats load, belt tension, speed, and idler arrangement as key design variables; changing one can affect tracking and wear. Inspect bent edges, seized hinges, loose fasteners, and residue near return rollers. Operators often miss the underside. The World Steel Association reported 1,882.6 million tonnes of crude steel production in 2024, reflecting the scale of material handling across steelmaking—not conveyor capacity. That distinction matters. Choose belt thickness and joint design using measured loads and temperatures, not appearance alone. Even careful calculations can miss impact peaks or poor alignment.

How Steel Conveyor Belts Are Classified by Design and Function

Steel conveyor belts are classified by construction and duty, not by appearance alone. ISO 15236-1 describes design and mechanical requirements for steel-cord belts, while ISO 15236-2 sets preferred belt-strength classes. For buyers, key design distinctions include cord arrangement, belt width, cover thickness, and splice method. Function then narrows the choice: high-tension belts suit long, steep routes; impact-resistant covers handle coarse rock; and heat-resistant covers serve hot materials. Different jobs.

CEMA’s Belt Conveyors for Bulk Materials, 7th edition, uses belt width, speed, material density, and loading geometry in capacity calculations. That matters: a strong belt can still perform poorly if the loading chute concentrates impact on one spot. Buyers should compare rated tension and cover properties with the actual route, material, and start-up loads. One awkward reality is that the cheapest specification may look adequate on paper, yet wear early where lumps strike the belt.

Tips: Ask suppliers for the belt-strength class, cover-grade test data, and splice details. Check the loading zone in person; a sharp transfer point or uneven feed can shorten service life. Recheck the selection when operating conditions change.

Top 10 Steel Conveyor Belt Types for Buyers — How Steel Conveyor Belts Are Classified by Design and Function

No.	Belt Type	Design and Classification	Primary Function	Common Applications	Key Buyer Considerations
1	Steel-Cord Rubber Belt	Rubber belt with longitudinal steel cords embedded as tensile reinforcement.	Handles high-tension, long-distance conveying with limited belt stretch.	Mines, ports, power plants, and long overland conveyor systems.	Check required tensile rating, splice design, pulley diameter, impact conditions, and cover properties such as abrasion or heat resistance.
2	Stainless Steel Wire-Mesh Belt	Open mesh formed from linked or interwoven metal wires; stainless steel is selected when corrosion resistance or cleanliness is important.	Allows air, liquids, or heat to pass through the conveying surface.	Food processing, washing, drying, cooling, and heat-treatment lines.	Specify wire and mesh dimensions, open area, allowable load, operating temperature, cleaning method, and compatibility with the process environment.
3	Balanced-Weave Wire Belt	Alternating right- and left-hand wire spirals joined by cross rods to form a stable, flexible mesh.	Provides an open, flexible conveying surface for light to moderate loads and process flow-through.	Baking, cooking, cooling, drying, and general product handling.	Review mesh opening, belt tracking method, product size, temperature, and whether the belt needs edge links or special drive arrangements.
4	Compound-Balanced-Weave Wire Belt	A denser variation of balanced weave, typically using multiple spiral components to create a tighter mesh.	Supports smaller products and reduces the size of openings compared with more open mesh designs.	Small food products, fine components, and processes requiring a more continuous support surface.	Confirm the minimum product size, mesh openness, cleanability, belt flexibility, and the effect of the denser construction on airflow or drainage.
5	Flat-Wire Belt	Flat metal strips are connected by cross rods, forming a relatively open belt with a broad carrying surface.	Conveys products while allowing drainage, airflow, or cleaning access.	Food handling, washing, cooling, and industrial parts processing.	Check strip spacing, cross-rod design, edge construction, product support needs, and resistance to wear or corrosion.
6	Chain-Driven Wire-Mesh Belt	Wire mesh is attached to drive chains along one or both edges for positive, controlled movement.	Reduces reliance on friction drive and helps maintain belt movement on demanding process lines.	Heat-treatment equipment, ovens, washers, and heavy or long process conveyors.	Match chain pitch and attachments to the conveyor sprockets; consider chain lubrication, operating temperature, and maintenance access.
7	Ladder-Style Wire Belt	Cross rods are held by side links, creating a simple, highly open structure.	Provides a lightweight conveying surface with substantial airflow and drainage.	Cooling, drying, washing, and conveying larger or well-supported products.	Evaluate product stability across the openings, side-link design, drive method, and whether the open structure suits the process.
8	Steel Slat (Plate) Belt	Individual steel slats or plates are connected to drive chains, forming a comparatively continuous carrying surface.	Moves rigid, heavy, or hot items where a flexible wire mesh surface may not provide enough support.	Manufacturing lines, stamping operations, foundries, and assembly systems.	Check slat thickness and width, chain capacity, transfer gaps, load distribution, and exposure to heat, impact, or sharp edges.
9	Apron (Pan) Belt	Overlapping steel pans are attached to chains to create a robust trough-like carrying surface.	Conveys heavy, abrasive, or hot bulk materials and can accommodate significant impact loading.	Quarries, cement plants, foundries, and bulk-material handling systems.	Assess material size and abrasiveness, impact at loading points, pan overlap, chain and sprocket capacity, and required incline or containment.
10	Piano-Hinge Steel Belt	Steel plates are connected by hinge-like joints and transverse pins; versions may be solid or perforated.	Provides a durable, articulated surface for carrying scrap, parts, or process materials.	Metalworking, stamping, chip removal, scrap handling, and parts conveying.	Choose solid or perforated construction based on material retention and drainage; check hinge-pin wear, load, belt width, and the conveyor’s return path.

Selection note: “Steel conveyor belt” can refer to steel-cord-reinforced rubber belts or belts made from metal wire, strip, slats, pans, or plates. Confirm the required conveying duty, operating temperature, material characteristics, drive arrangement, and cleaning or maintenance requirements before comparing designs.

Top 10 Steel Conveyor Belt Types and Their Key Applications

Steel conveyor belts differ in flexibility, opening size, and load support. Wire-mesh belts suit drying, cooling, and light processing, where airflow matters. Balanced-weave belts run smoothly around smaller pulleys; compound-balanced designs provide denser coverage for small parts. Chain-edge mesh belts handle wider or heavier runs, including oven and washer lines. Fit matters.

Ladder belts have open crossbars for cooling and draining, while eye-link belts support heavier pieces on a stable surface. Flat-flex belts suit snacks and small components, but tiny items may catch in the openings. Piano-hinge belts use connected steel plates for scrap, stamping, and recycling lines. Apron or slat belts carry hot, sharp, or bulky loads, such as castings. Steel-cord reinforced belts suit long-distance, high-tension bulk transport, but they are not all-metal belts.

Choose by application, not by name alone. Check operating temperature, belt speed, edge drive, cleaning method, and the smallest product dimension. A crumb-sized piece can slip through a modest opening. Confirm pulley diameter and tension, then test under an actual load if stoppages are costly. Catalog descriptions rarely show wear at joints or edges. Inspect those areas closely.

The 1–5 scores are qualitative buyer-guide ratings for continuous thermal processing, not measured performance data. Wire-mesh constructions are commonly used for baking, drying, cooling, and heat treatment; steel-cord belts are primarily used for long-distance bulk conveying. Actual suitability depends on belt materials, operating conditions, and system design.

Comparing Belt Performance, Durability, and Maintenance Requirements

Steel conveyor belts differ in how they handle impact, heat, abrasion, and tracking. Steel-cord belts suit long, high-tension routes; their cords provide strength, but damaged covers can expose reinforcement and complicate repairs. Wire-mesh belts allow airflow and drainage, making them useful in drying or washing lines. Hinged steel belts and apron belts tolerate hot, sharp loads, yet their joints need regular inspection. Chain-edge and pan-style designs can carry heavy components, but added mass increases starting and drive loads. Small details matter.

CEMA’s Belt Conveyors for Bulk Materials, 7th edition, emphasizes matching belt tension, loading, and conveyor geometry to operating conditions. That guidance matters: a durable belt can still wear quickly if material repeatedly strikes one point or the structure is misaligned. The U.S. Department of Energy’s 2014 motor-systems market assessment reports that motor-driven systems account for about 68% of industrial electricity use; this figure covers industrial motor systems broadly, not conveyor belts alone. It underlines why buyers should assess belt mass and drive demand alongside purchase price.

Maintenance needs vary. Steel-cord belts require careful splice checks; mesh belts need debris cleared from openings; hinged designs need attention to pins and wear plates. Track repairs, spillage, and edge damage during routine inspections. A practical catch: maintenance intervals based on ideal conditions often fail on dusty, wet, or shock-loaded lines. Compare expected service life using site-specific load, temperature, and cleaning records, not a brochure rating.

How Buyers Choose the Right Steel Conveyor Belt

Choosing a steel conveyor belt starts with the material it will carry, not its catalog name. Sharp scrap can damage a light mesh belt, while wet food residue may collect in tight joints. Record the load’s weight, size, temperature, moisture, and abrasiveness. Small details matter.

Then match the belt structure to the job. Wire mesh allows airflow and drainage. Hinged steel belts handle heavier parts and can follow compact return paths. Solid plate belts offer support for small items, but may need more careful cleaning. Check belt width, speed, sprocket fit, and the conveyor’s frame dimensions together. A mismatch can cause poor tracking or uneven wear.

Ask how maintenance will work in the actual plant. Can staff reach the joints? Are replacement sections easy to install? Will washdown water drain away, or pool beneath the belt? A specification sheet may not reveal these problems. I would also question any choice based on maximum load alone; impact, starts and stops, and abrasive dust can change belt life. If the operating conditions are uncertain, test a short section under realistic loads before committing to a full installation. One detail is easy to overlook: noise. A belt that performs well but rattles beside a work station may become a daily irritation.
